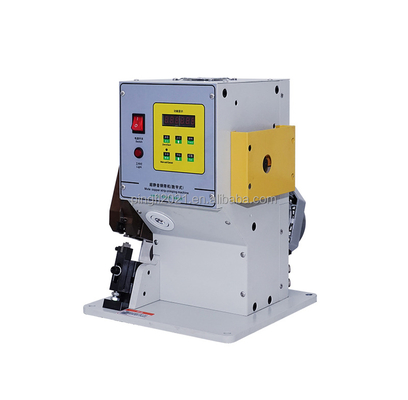

Electrical digital copper strip crimping machine
Model:PFL-0004MS
| Features: |
1.Work With 750W motor and RV63 reducer,and it has a large crimping force because of large torque with a 40% icreased over the traditional machines.
2.Three axles throught-type spindle mounting method,front and back supporting,
concentric axles without gap,keep the rimping force much firmer!
3.Motor drive step feeding and digital length setting ensure the easy and quick
adjustment and more stable wire feeding.
4.The diameter of main axle and eccentric shaft expanded to lead the main axle to
have better inintensity and be more durable!
5.The optimized box structure with the machine head in the box,has stronger bearing
strength than the traditional machines in which four screws are used to connect the
machine head to the middle base!
| Apply for: |
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Specification: |
| Useage: | Copper belt crimping machine | |
| Power supply: | 220V 50/60Hz | |
| Power rated: | 750W RV63 / 1:15 | |
| Crimping force: | 2.5Ton | |
| Copper strip feeding mode: | Motor drive/Step feeding | |
| Copper width: | 2mm,4mm,6mm optional | |
| Maximum copper length: | 60mm | |
| Maximum copper width: | 6mm | |
| Maximum crimping width: | 6.5mm | |
| Maximum crimping diameter: | 6mm2 | |
| Measurement: | 335*300*435mm | |
| Weight: | 55kg | |
| Products details: |
| Samples: |
| Package: |
| All Models: |
| Related Products: |
| Technical support: |
Technical support is available during your daily using and maintainance.
We can customized products as you need.
We also provide OEM service.
We support all the agents from different countries.We will provide technology to help them have their own logo,brand and customers.
| After-Sale service: |
We have a team for after-sale service.
All of us trust than good service is as important as good quality.
If any problems in using,please contact us.
For the products within the warranty period,we will slove the problem for you for free.
For the products out of the warrany period,we also will offer the best rate for the replacement to you.
| FAQ: |
We are a professional manufacturer of wire stripping machines,cutting machines in China for 10 years.
And we also sale kinds of packing machines,tape machines as a agent.
we have strong integration of resources,to help customers find the products in China market.
We have import and export permissions for our products.
We have ISO international certification and CE certifications to export.
You can click the video to see how the machines work.
we also can provide e-catalog to show more specifications,you can contact sales to get them.
If you don’t understand how to work the machines,you can contact our sales to get manual or video about how to install and set
For the products within warranty period,we will prvide the spare parts to repair for free
Technical support is provided all long time during your daily using and maintain
We provide professional technical support,best agent price,help them to creat their own logo,brand,help them to find the customers in their countries
| How to order: |
NOTE:
Operating video,detailed information of each model and any further questions,please contact with us ANY TIME!
